Western Treka M
Please, Call Us For Prices

The Western-Treka is a brilliant self-contained, rear facing horse trailer designed to transport two horses and all of your tack and equipment in the extra large tack and changing area, which is totally separate from the horse area. The extra width of the tack and changing area of the Western-Treka is designed to enable safe storage and transportation of Western style saddles and other large pieces of equipment. It is also equipped with two saddle racks, two bridle racks and two coat hooks. The low, wide side ramp and safety loading doors make loading your horse far easier and safer.

OPTIONAL EXTRAS (Prices shown with VAT excluded)

  • Awning
    Cassetie wind out awning for shade and shelter. Supplied with white awning casing as standard, can be painted at extra cost to match the vehicle. Please enquire for a quotation
  • Easy Clean Entry Mat
    Easy to clean door mat to help keep the living/tack area clean
  • Fire Blanket
    Made to British and European Standard specification (BS EN 1869)
  • Fire Extinguisher
    Dry powdered fire extinguisher for emergencies, including fixing bracket. Made to British and European Standard specification (BS EN 1869)
  • First Aid Kit
    Contains a range of dressings for basic medical emergencies
  • Fitted Curtains
    Living area curtains for front and side windows
  • Fold Down Table
    Table folds away neatly when not in use to maximise space in living area
  • Large Front Window
    Attractive front window for superior light in tack/living area
  • Living Door Window
    An opening window for extra light and ventilation in the living area
  • Mirror
    Mirror in the living area
  • Porta Poti
    Portable self-contained toilet. 15 litre fresh water, 12 litre waste
  • Seat with Storage
    Built in seat with handy storage and liti up lid
  • Additional Partition
    Basic Additional partition. Various upgrades available including Padding for partition, extra height partition, full depth partition and head divider.
  • Additional Skylight Roof Vent
    Multi-directional opening skylight for increased ventilation
  • Anti-Weaving Grill
    Anti-weaving grill including high level breast bar (Breast Bar Solid to Floorrequired)
  • Breast Bar Solid to Floor
    Full depth solid breast bar, ideal for enclosing a mare and foal or small ponies
  • Collapsible Full Depth Breast Bar
    7mm thick heavy duty clear PVC breast bar infill which has been designed to create a breast bar to floor barrier, but in the event of an emergency will still allow the full operation of the collapsible breast bar
  • Digital Camera with 7” Monitor socket
    Wireless and waterproof camera for the horse area with day and night vision. Images are displayed on a 7” dashboard mounted colour monitor powered by 12 volt socket
  • Digital Reversing Camera
    Waterproof camera giving clear rear view whilst reversing. Only available as an addition to Digital Camera with 7” Monitor
  • Electric Roof Extractor Fan
    Extracts up to 350m 3 of air per hour even if stationary
  • Elite Partition
    New and exclusively designed stainless steel extra height partition upgrade. Breast bar operational at one height with this partition, upgrade to standard partition.
  • Extra Height Partition
    Extra 9” high partition ideal for larger horses. Upgrade to standard partition
  • Extra Height Safety Loading
    Doors Safety loading doors with increased height to 6ti as an upgrade to standard safety loading doors (Safety Loading Doors required)
  • Extra Vent Window
    An opening window for extra light and ventilation in the horse area
  • Flettner 2000 Roof Ventilator
    Offers cost effective wind powered ventilation providing a more comfortable environment for your horse by removing excess heat, damp and stale air from the horse area
  • Flush Glazed Windows
    Flush glazed, tinted windows to enhance the appearance of your trailer. Not available for Space?Treka M, Show?Treka M and Western?Treka M models (L models only) (Front Window recommended)
  • Full Depth Partition
    Solid partition to floor, upgrade to standard partition
  • Grooms Door Window
    An opening window with safety bars for extra light and ventilation in the horse
  • Grooms Locker
    Offering extra storage accessible through an external locking door, fitied with a shelf and a light
  • Hard Wired Camera with 7” Monitor and Reversing Camera
    A hard wired twin camera system, that gives the sharpest and clearest picture out of all the systems we offer
  • Head Divider
    Moulded swivelling head divider to separate horses heads
  • Lined Roof
    Insulated double lined roof in horse area
  • Loading Light
    Shining onto the ramp for easy loading in the dark
  • Padded Walls
    Padding to side and rear walls for extra protection and comfort
  • Padding for Partition
    Padding on both sides of the partition for extra protection and comfort
  • Red LED Travel Light
    Red LED travel light in horse area
  • Storage Rack (Each)
    Useful extra storage for rugs, boots etc. can be fitied in either the horse area (five seater range only) or the tack/changing area
  • Tack Locker
    Offering extra storage accessible through an external locking door, fitied with light, two saddle and two bridle racks
  • White Easy Clean Safety Loading Doors
    White easy clean ramp safety loading doors. Includes white partition in?ll
  • Graphics
    Text of your choice in a rectangle space up to 250mm x 500mm in size
  • Paint Colours
    Paint in a choice of standard colours: Aluminium Silver, Ruby Red, GoldenWhite, Azzuro Blue, Graphite Grey, Dragoon Blue and Bianca White.Any other colour available upon quotation (Colour Coded Bumpersrecommended)
  • Paintseal Direct TM
    Paintseal products o?er a protective coating on paintwork and panels to help reduce scratches caused by trees etc. whilst maintaining a long lasting high gloss appearance
  • Extra Tie Ring (Each)
    Can be positioned in most places on the vehicle for ease of use
  • Ferry Lashing Points
    Four lashing points to secure your horsebox whilst travelling by ferry
  • Hitch Cover
    Water resistant cover to protect hitch and lock
  • Side Protectors
    Durable sheets to protect the side of your vehicle whilst horses are tied up
  • Sulky Brackets
    Fitied to rear of the vehicle for carrying sulky cart
  • Trailer Cover
    Water resistant cover to protect trailer (colour may vary)
  • Wheel Clamp
    Exclusive Equi?Trek wheel clamp speci?cally designed to ?t all Equi?Trek trailers. Secure, easy to ?t and insurance approved

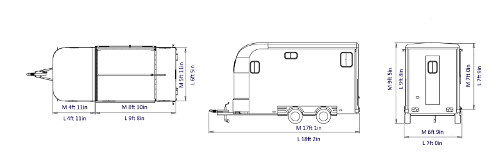

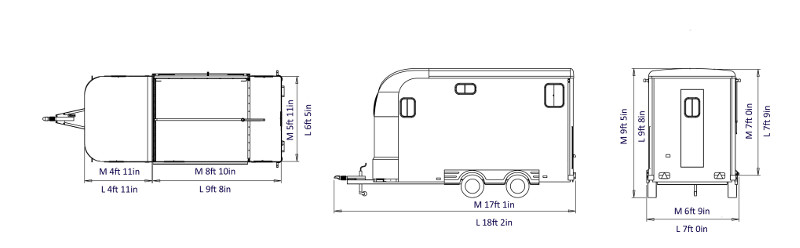

Dimensions and Weights
Ft
Mt
Unladed Weight
1130 KGs
Gross Weight
2500 KGs
Axle 1
1300 KGs
Axle 2
1300 KGs
Layouts
Layout western-treka-m
Full Name:*
Email: *
Phone: *
Message:*
Relax your data is safe with us
We use your data in order to contact you regarding your request. If you want to learn more about our privacy policy and how we deal with your data, please visit our privacy policy section Click here

Full Name:*
Phone: *
Relax your data is safe with us
We use your data in order to contact you regarding your request. If you want to learn more about our privacy policy and how we deal with your data, please visit our privacy policy section Click here

  • Paint and Graphics
  • Self Colour White with Black Graphics
  • Main Body
  • Aerodynamic Fibreglass Mould
  • Spare Wheel and Brace
  • Galvanised Steel Chassis
  • Lockable Coupling
  • Independent Suspension
  • Four Fully Braked Wheels
  • Built in ISO9001 Factory
  • Two External Tie Rings
  • Step for Easy Access through to Grooms Door
  • Horse Area
  • Light and Spacious Interior
  • Full Width, Collapsible Padded Breast Bar
  • Composite High Impact Kick Boards
  • Strong Aluminium Plank Floor
  • Slip Resistant Rubber Ramp
  • Safety Loading Doors
  • Composite Panels
  • Adjustable Partition with PVC Skirt to Floor
  • Self-Contained Horse Area
  • Grooms Door
  • Two Horse and Haynet Tie Rings
  • Three Opening Windows and Dome Roof Vent
  • One Interior Light
  • Tack and Changing Area
  • Living Door
  • One Interior Light
  • Easy-Clean Cushion Flooring
  • One Opening Window
  • Two Saddle Racks and Two Bridle Racks
  • Paint and Graphics
  • Self Colour White with Black Graphics
  • Excel Graphics
  • Main Body
  • Aerodynamic Fibreglass Mould
  • Spare Wheel and Brace
  • Galvanised Steel Chassis
  • Lockable Coupling
  • Independent Suspension
  • Four Fully Braked Wheels
  • Built in ISO9001 Factory
  • Two External Tie Rings
  • Step for Easy Access through to Grooms Door
  • Horse Area
  • Light and Spacious Interior
  • Full Width, Collapsible Padded Breast Bar
  • Composite High Impact Kick Boards
  • Strong Aluminium Plank Floor
  • Slip Resistant Rubber Ramp
  • Safety Loading Doors
  • Composite Panels
  • Adjustable Partition with PVC Skirt to Floor
  • Self-Contained Horse Area
  • Grooms Door Window
  • Grooms Door
  • Additional Skylight Roof Vent
  • Storage Rack
  • Head Divider
  • White Easy Clean Safety Loading Doors
  • Two Horse and Haynet Tie Rings
  • Three Opening Windows and Dome Roof Vent
  • One Interior Light
  • Tack and Changing Area
  • Seat with Storage
  • Living Door
  • One Interior Light
  • Easy-Clean Cushion Flooring
  • One Opening Window
  • Two Saddle Racks and Two Bridle Racks
  • Seat with Storage
